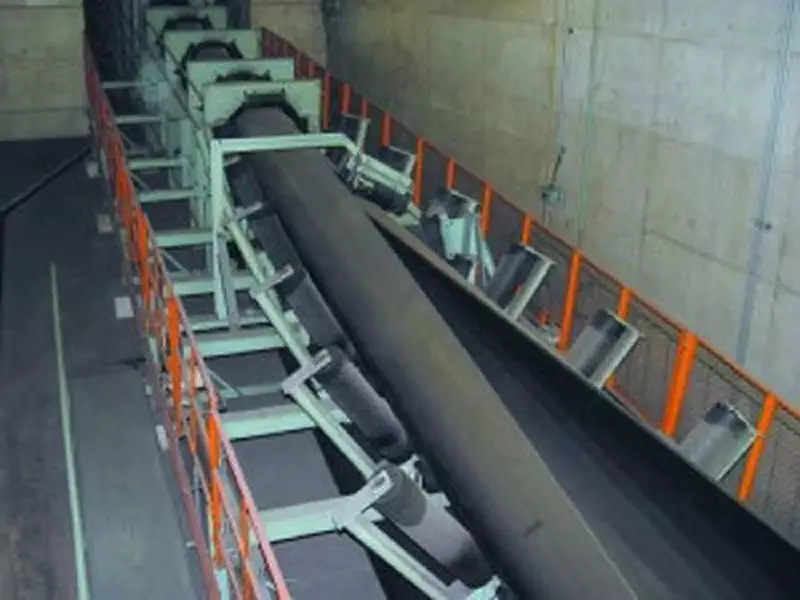

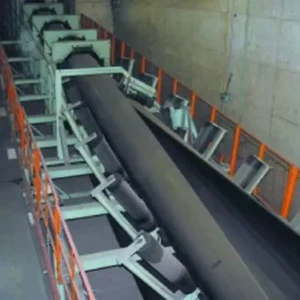

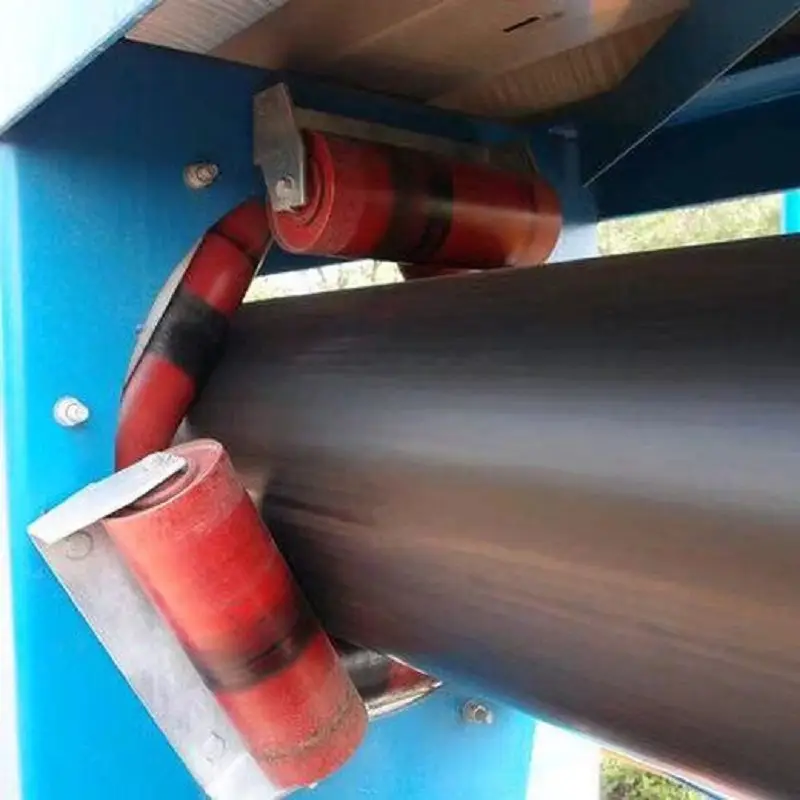

Tubular Conveyor Belt
Tubular conveyor belts are environmentally friendly. When conveying materials, the belt forms a closed tube, ensuring dust-free, leak-free, and environmentally friendly transportation.

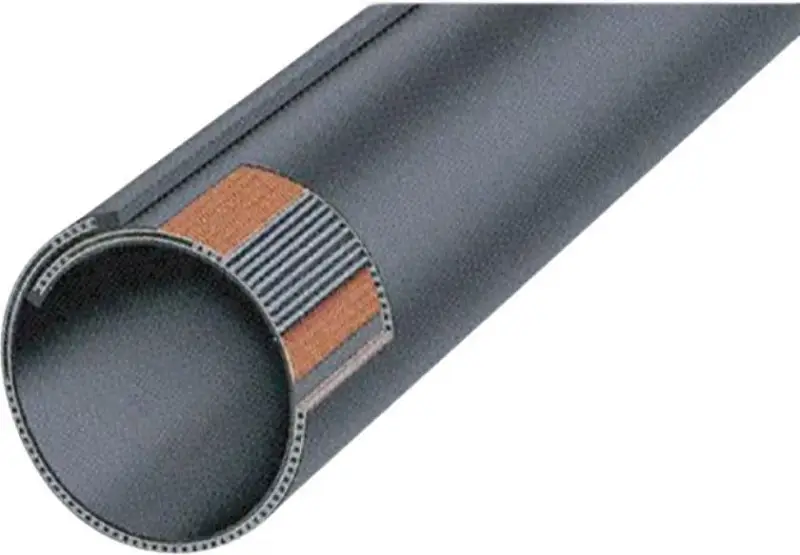

Classification: Based on the carcass structure, they can be divided into fabric-core tubular conveyor belts and wire rope-core tubular conveyor belts.
Applications: Widely used for the closed conveying of bulk materials in industries such as metallurgy, power generation, chemicals, ports, docks, building materials, coal, mining, and grain. They offer various types of properties, including wear resistance, heat resistance, cold resistance, chemical corrosion resistance, flame retardancy, and anti-static properties.
Features: Closed conveying, curved conveying, conveying at high angles, reciprocating conveying, and high-speed and high-load conveying.
|
Parameter number
|
Code / Example Value
|
meaning
|
|
1
|
300
|
Belt length
|
|
2
|
1000
|
width
|
|
3
|
NN
|
Core material code
|
|
4
|
5
|
Number of core layers
|
|
5
|
1000
|
Longitudinal full thickness tensile strength
|
|
6
|
4+2+2
|
Thickness of upper and lower covering glue and transition layer
|
|
7
|
L
|
Covering performance grade code
|
Pipe conveyor belt
|
Parameters section
|
Sample content
|
|
width
|
1000
|
|
Core material code
|
ST
|
|
Longitudinal full thickness tensile strength
|
800
|
|
Thickness of upper and lower covering glue
|
5+5
|
|
Covering performance grade code
|
L
|
Conveyor Belt Usage Precautions:
1. Do not connect conveyor belts of different types, models, or specifications together.
2. Carefully inspect the conveyor belt before starting.
3. Do not exceed the design tension of the conveyor belt and avoid overloading.
4. Adjust the cleaning device and scraper properly to avoid wear on the conveyor belt and prevent debris such as oil and grease from adhering to the conveyor belt, idlers, or rollers.
5. Avoid exposure to sunlight after rain or snow, which can cause aging of the conveyor belt.
6. Avoid using gas cutting machines or electric welders around the conveyor belt to prevent damage.
7. Repair damaged conveyor belts promptly.
8. Feed material in the same direction as the conveyor belt’s running direction. Feed material evenly to avoid excessive localized loads.
9. Minimize material drop.
10. When gluing belts, ensure the joint direction is aligned with the running direction to avoid damage to the material and scraper.
Nylon canvas tubular conveyor belt: Horizontal turning radius R ≥ rx300, vertical turning radius R ≥ rx300.
Steel cord tubular conveyor belt: Horizontal turning radius R ≥ rx600, vertical turning radius R ≥ rx600.
Transition section length L: Nylon canvas conveyor belt ≥ rx25, Steel cord conveyor belt ≥ rx50.
Model examples
